Refractory Material Aluminium Brazing Furnace 8150mm Standard Muffle Length

Continous , Aluminum Brazing Furnace , Controlled Atmosphere , Refractory Material

Overview

Under the effect of nitrogen protection, the equipment uses non-corrosive brazing agent to continuously braze aluminum medium cooler tank, automobile air conditioning condenser, evaporator, heater fan tank, aluminum oil cooler and other products etc.

Features

• Fire- resistant materials are adopted to ensure the superior insulation feature of the furnace with low energy consumption while empty load.
• The excellent designing and manufacturing of the gas distribution system and atmosphere curtain of the furnace ensure the low consumption of purified nitrogen and save the furnace atmosphere so as to decrease the production cost.
• The heating zone is good arranged, and the temperature control meters is very effective with high precision which guarantee the temperture at a rather stable level with little difference when brazing.
• Advanced frequency conversion mesh-belt speed control system realizes stepless speed change transmission and precise control runtime of workpieces in each heating zone so as to realize the precise heating curve of aluminum brazing.
• High precision oxygen analyzer has provided an advanced means for measuring the atmosphere of the aluminum brazing furnace timely and accurately.
• The spray fluxer has the features of compact in design and straightforward operation. The spray nozzle insures adequate spray on the workpieces. Air blower insures the extra flux can be blew off.

Aluminum Brazing Furnace Parameters

aluminum brazing furnace

mesh belt furnace

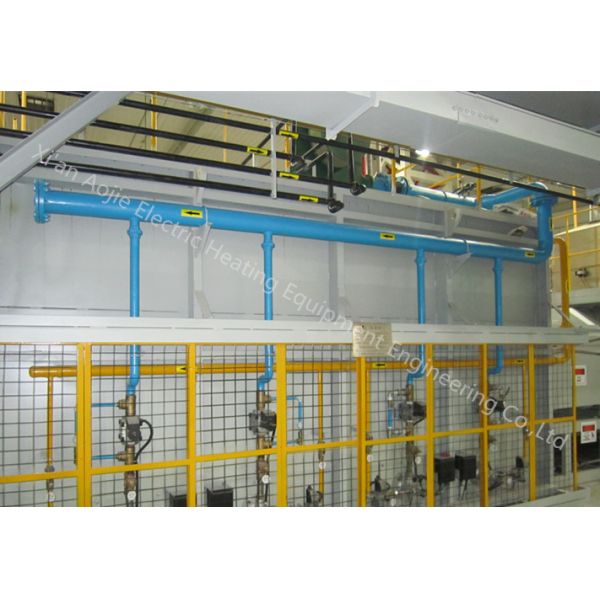

Refractory Material Aluminium Brazing Furnace 8150mm Standard Muffle Length Images
